NIXIE SOCKETS – COMMON ELEMENTS.

The sockets were created to unify the entire family of nixie tubes. The sockets are compatible with most of the projects presented on this page.

Buy it now

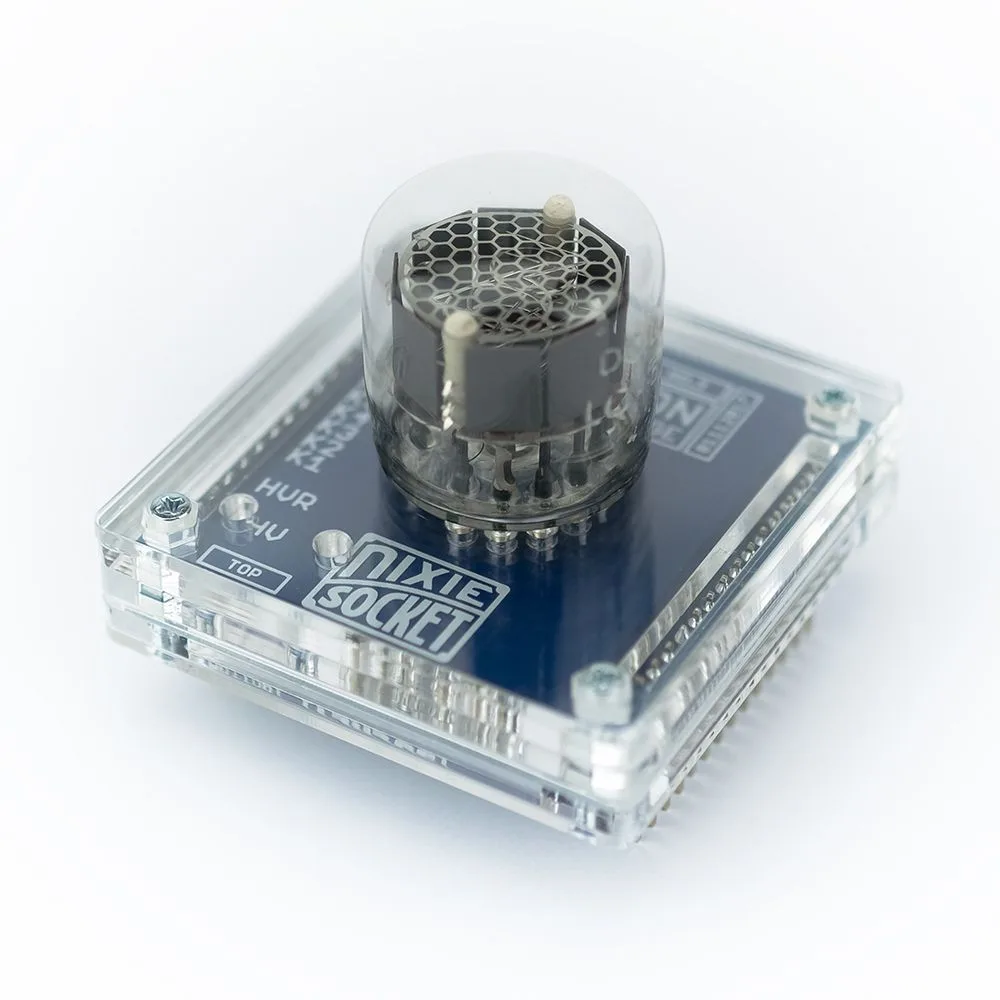

EASY TO USE.

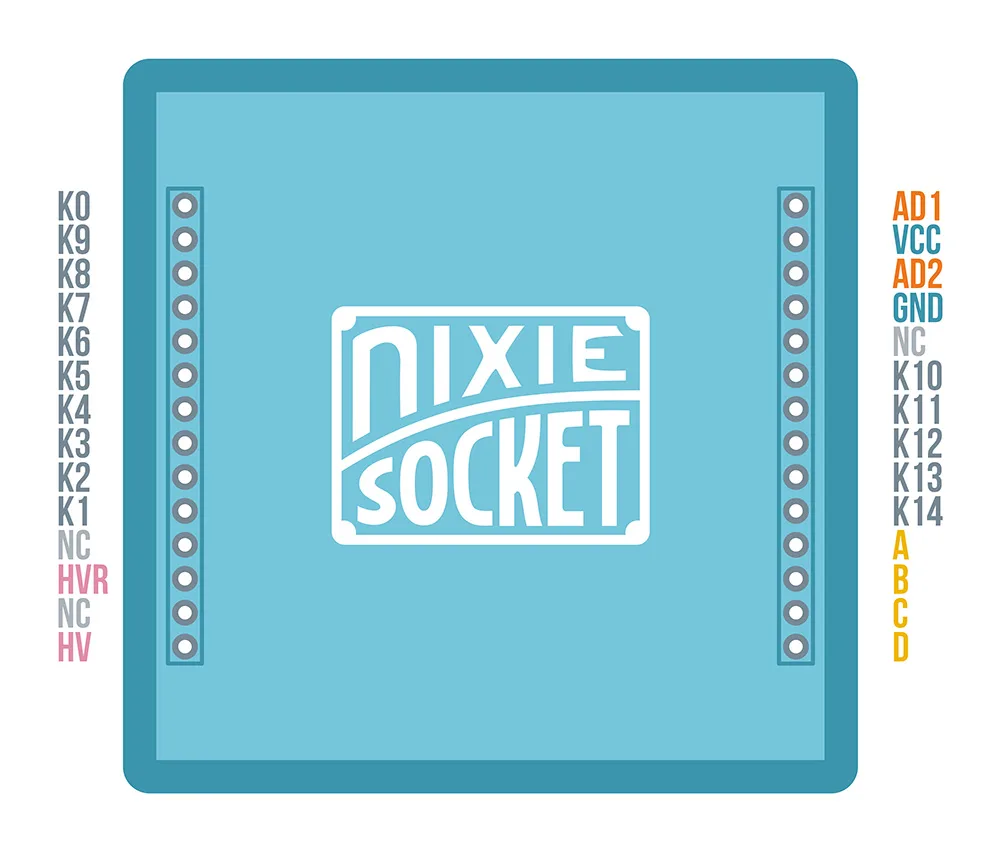

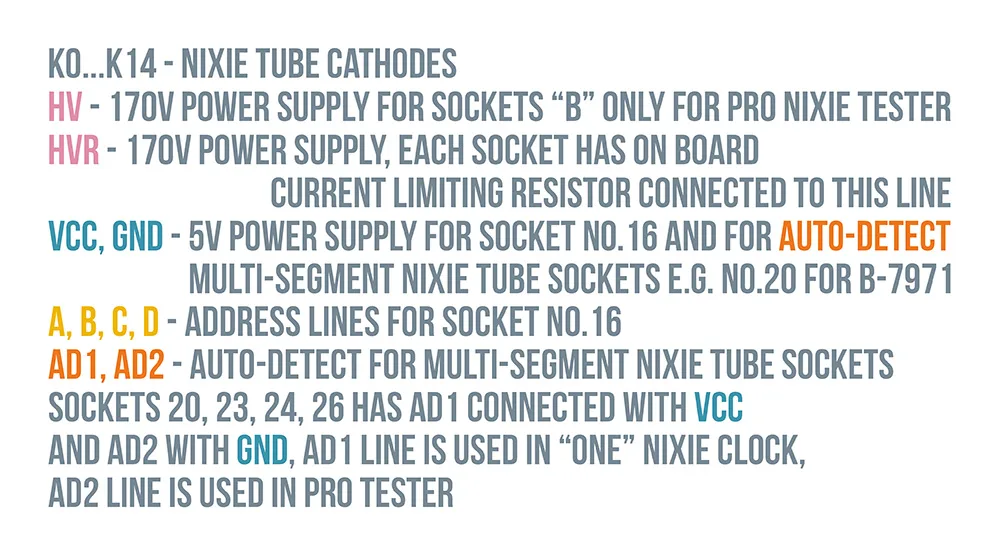

All sockets have the same pin layout which allows easy replacement of the sockets for different nixie tubes without having to any hardware change. When using the sockets with your device, sockets provides the valid power supply parameters for the compatible nixie tubes (supply voltage and current). There are 30 sockets available.

Show me datasheet

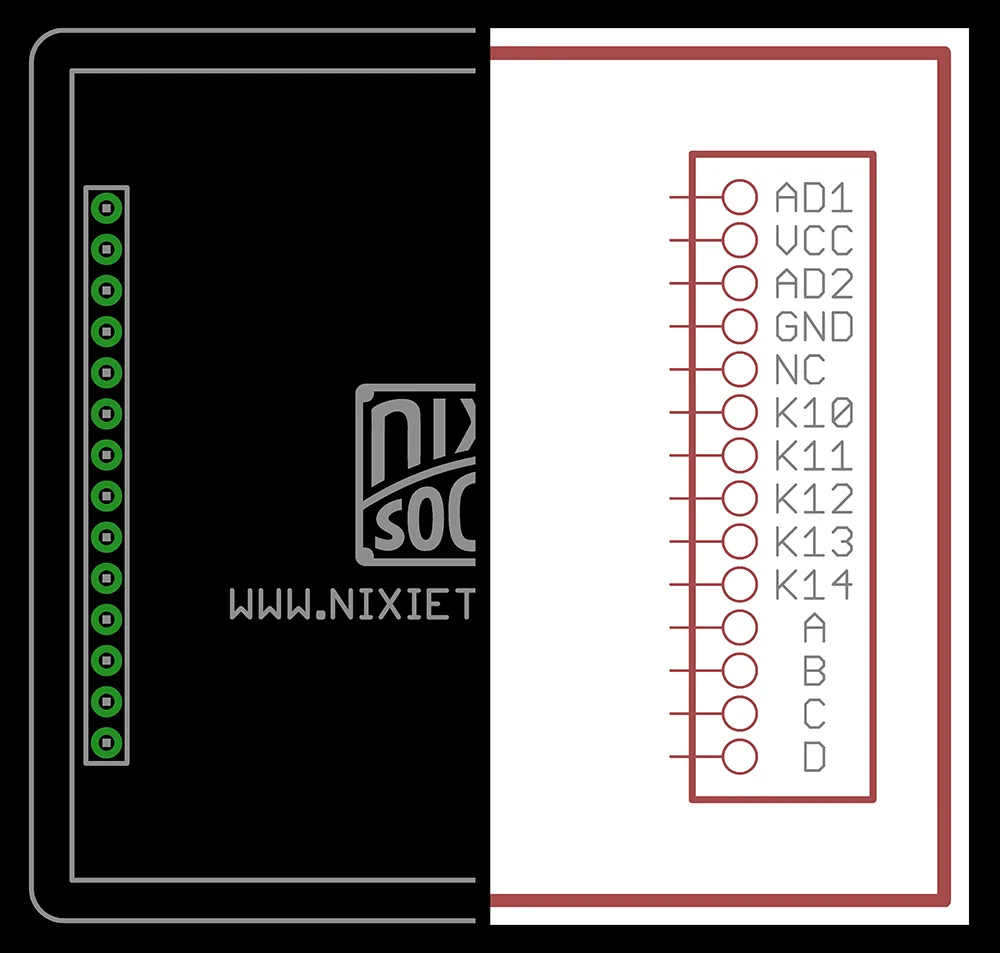

LIBRARIES – EAGLE & EASY EDA.

Libraries for use in your own project:

  • Eagle Library
  • EasyEDA Library
Download Libraries

NIXIE SOCKETS COMPATIBILITY.

SocketNixie Socket DriverONE Nixie ClockNixie LabPro TesterUniversal TesterUseless Device RPi HatArduino Shield
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20A
20B
21
22
23A
23B
24A
24B
25
26A
26B
27
28
29A
29B
30

SCHEMATICS.

Socket no.01Socket no.13Socket no.23B
Socket no.02Socket no.14Socket no.24A
Socket no.03Socket no.15Socket no.24B
Socket no.04Socket no.16Socket no.25
Socket no.05Socket no.17Socket no.26A
Socket no.06Socket no.18Socket no.26B
Socket no.07Socket no.19Socket no.27
Socket no.08Socket no.20ASocket no.28
Socket no.09Socket no.20BSocket no.29A
Socket no.10Socket no.21Socket no.29B
Socket no.11Socket no.22Socket no.30
Socket no.12Socket no.23A

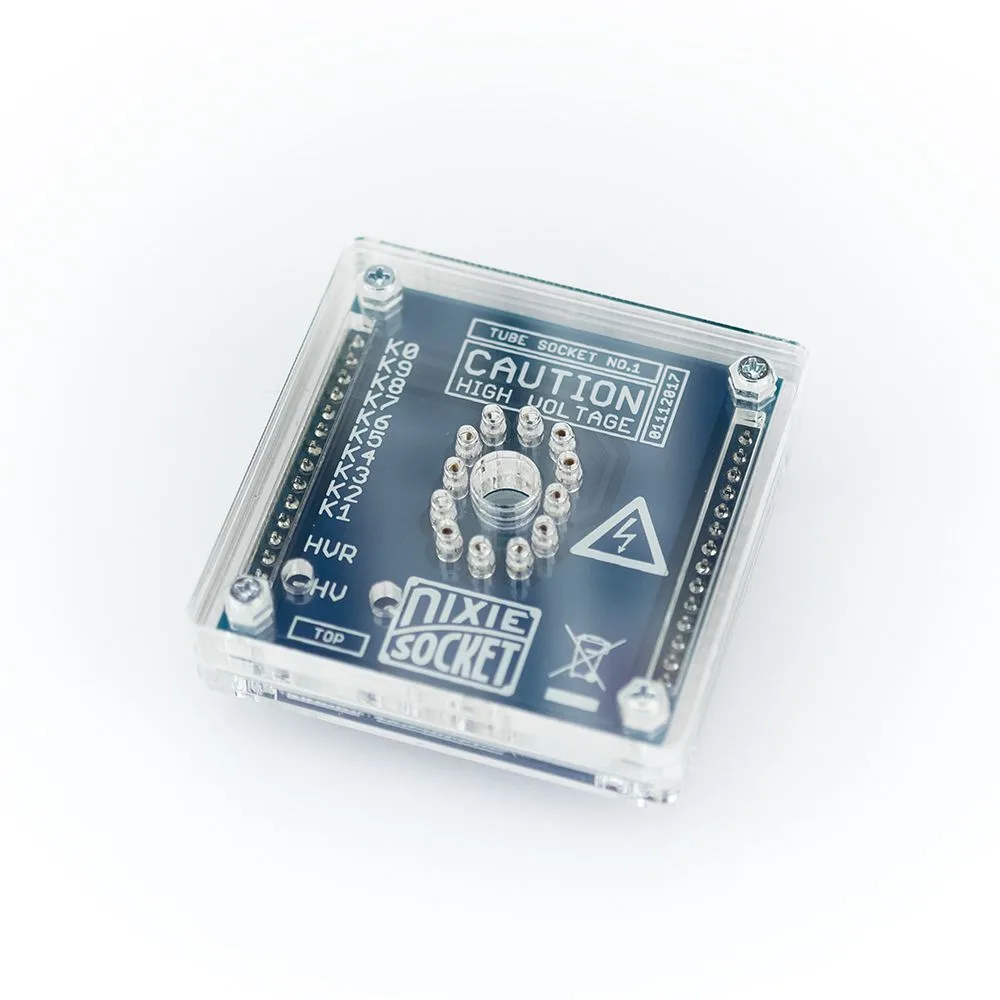

Nixie Tube Socket no.1

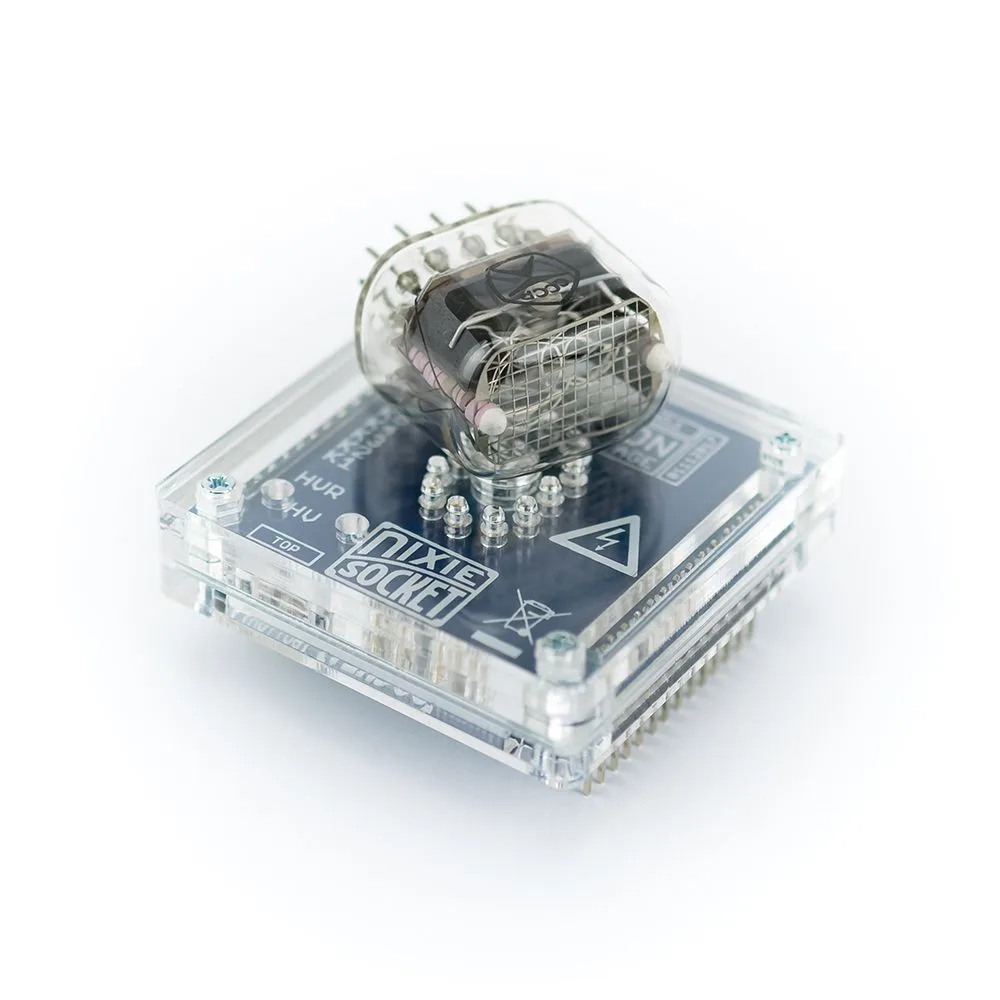

SOCKET NO.1

IN12A, IN12B, IN15A, IN15B, ZM1162, ZM1180, ZM1181, ZM1182, ZM1183, ZM1185A, ZM1185B, ZM1185D, ZM1185E, ZM1185F, ZM1186, ZM1188, GR1420, GR1430, F9152A, CD43, CD56, B59956

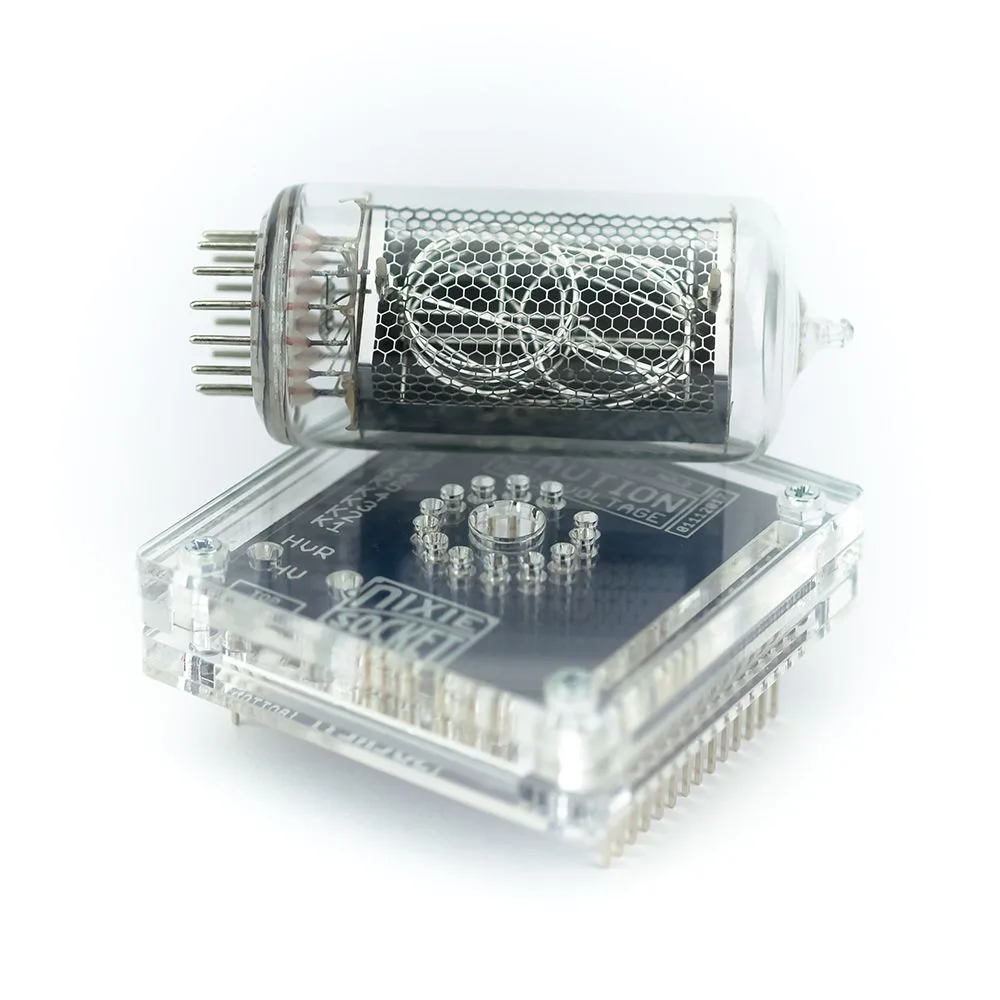

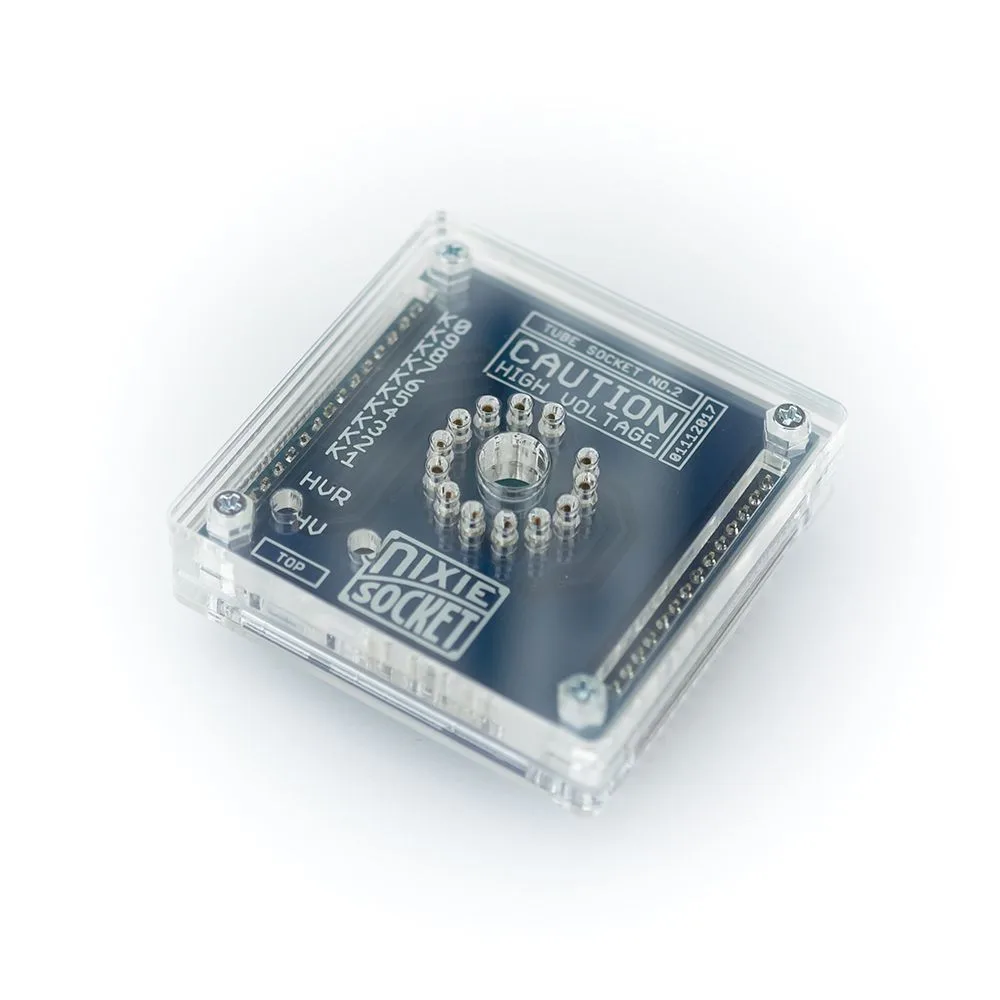

Nixie Tube Socket no.2

SOCKET NO.2

LC631, Z566M, Z5660M, Z567M, Z5670M, B566M, Z522M, ZM1040, ZM1041, ZM1041S, ZM1042, ZM1043, ZM1043S, ZM1047, ZM1049

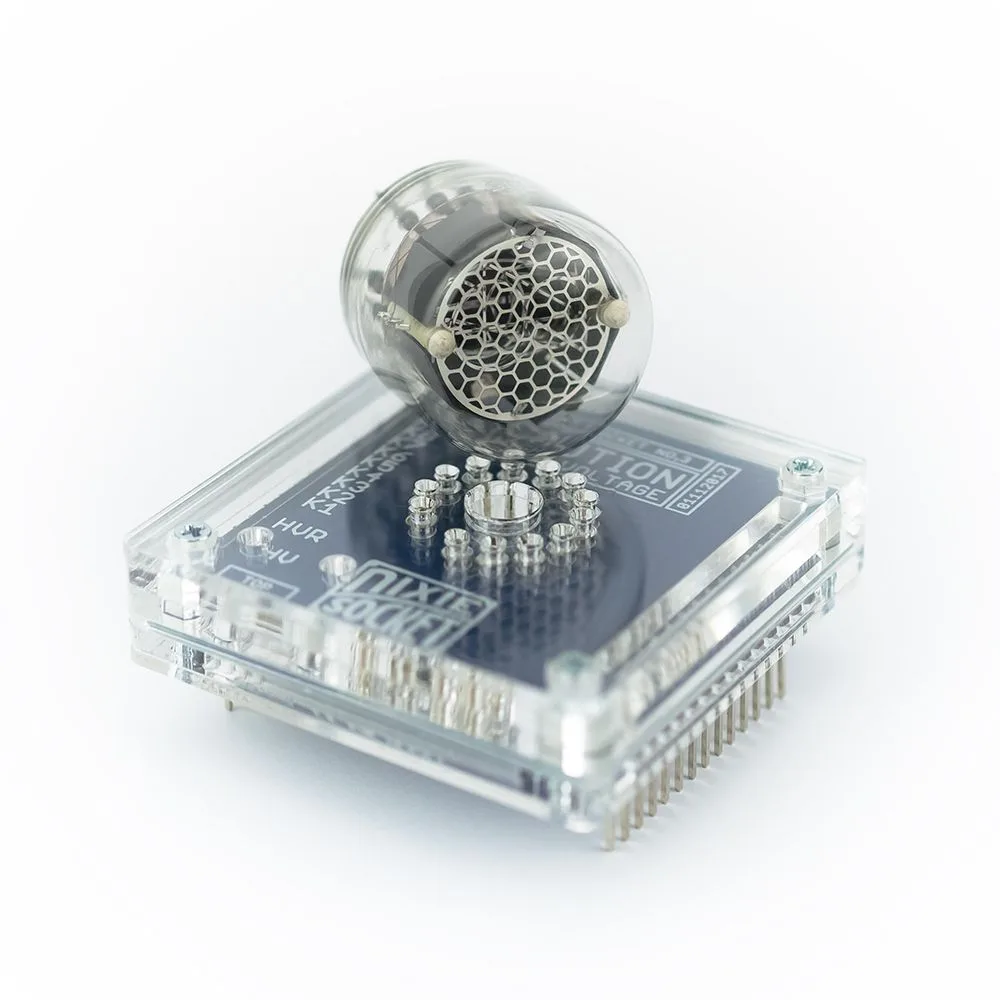

Nixie Tube Socket no.3

SOCKET NO.3

Z560M, Z5600M, Z510M, Z561M, Z562M2, Z562M3, ZM1020, ZM1021, ZM1022, ZM1023, ZM1024, ZM1025, B5092, B5094, NL5094, B6032, B6033, B6034, B6036, B6091, 6844A, LC513A, LC511, LL551, LL552, LL553, LL554, LL555, LL556, LL557, LL558, QS30-1

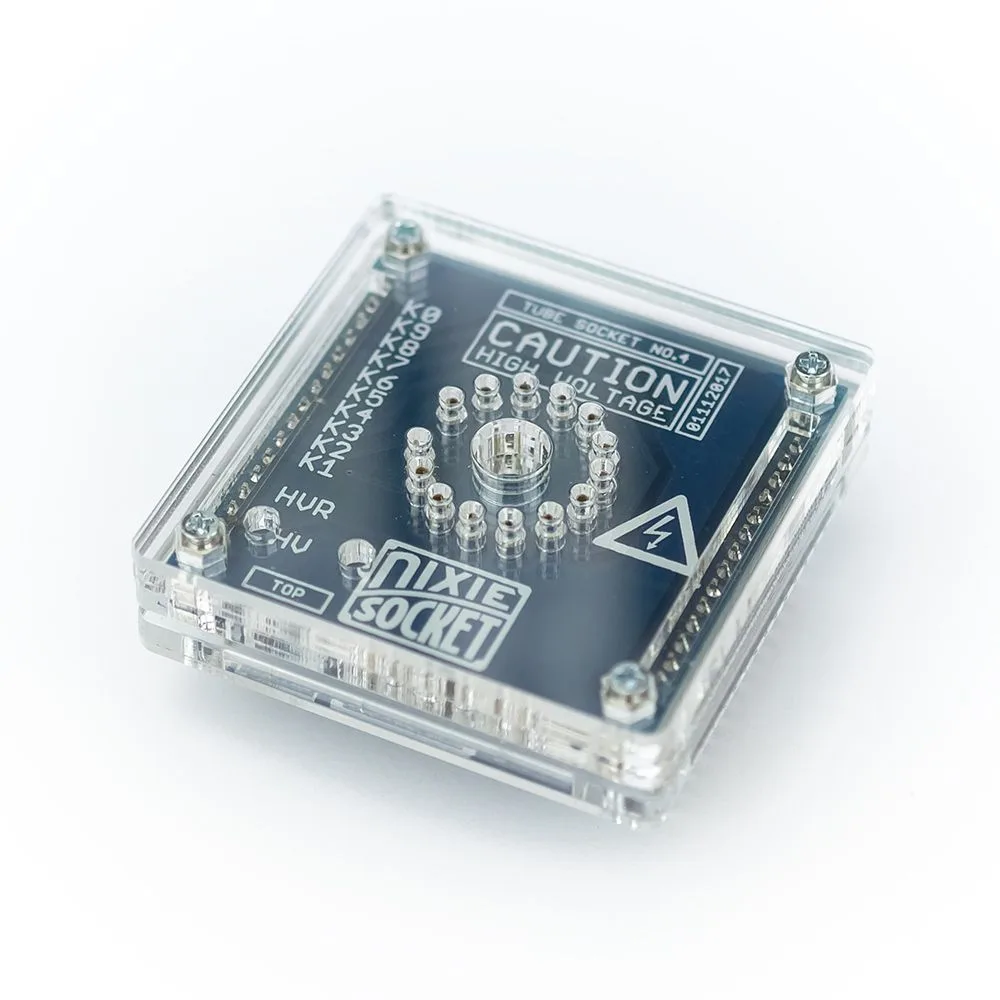

Nixie Tube Socket no.4

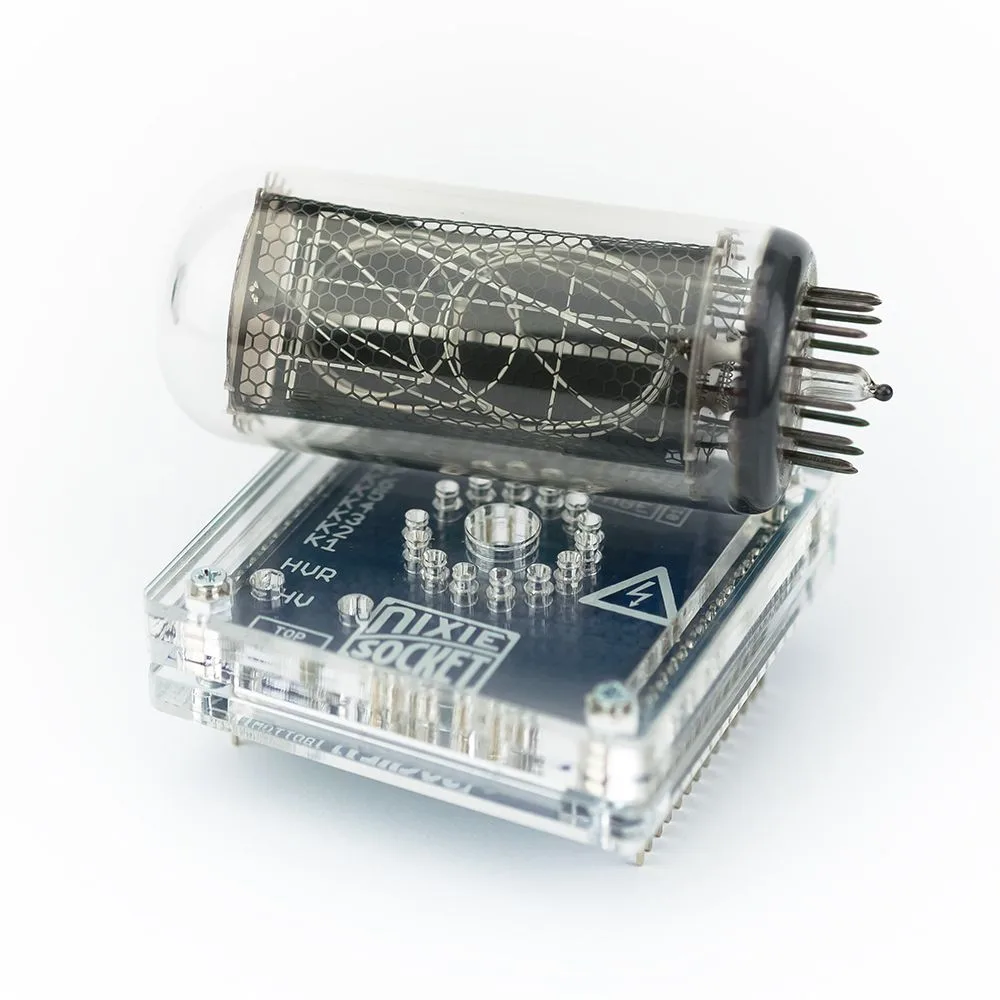

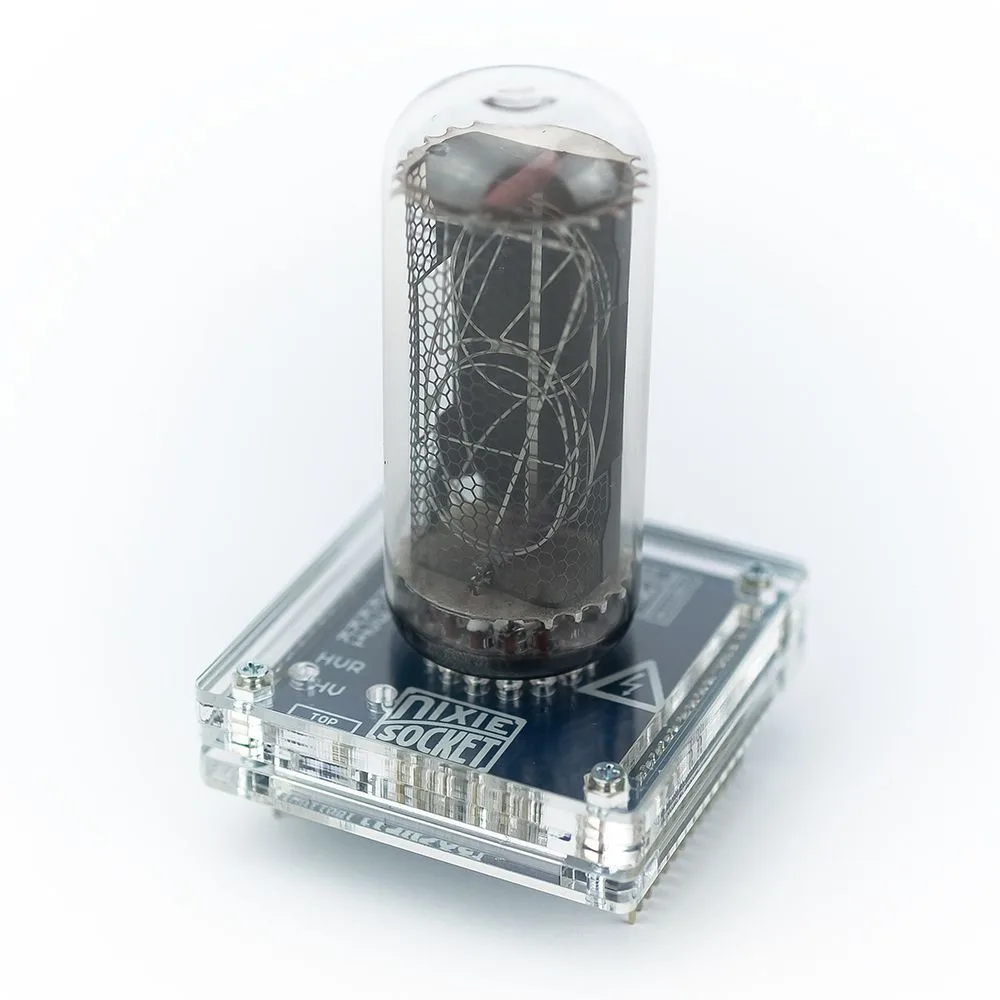

SOCKET NO.4

IN18, ZIN18 – Millclock (IN18 pinout)

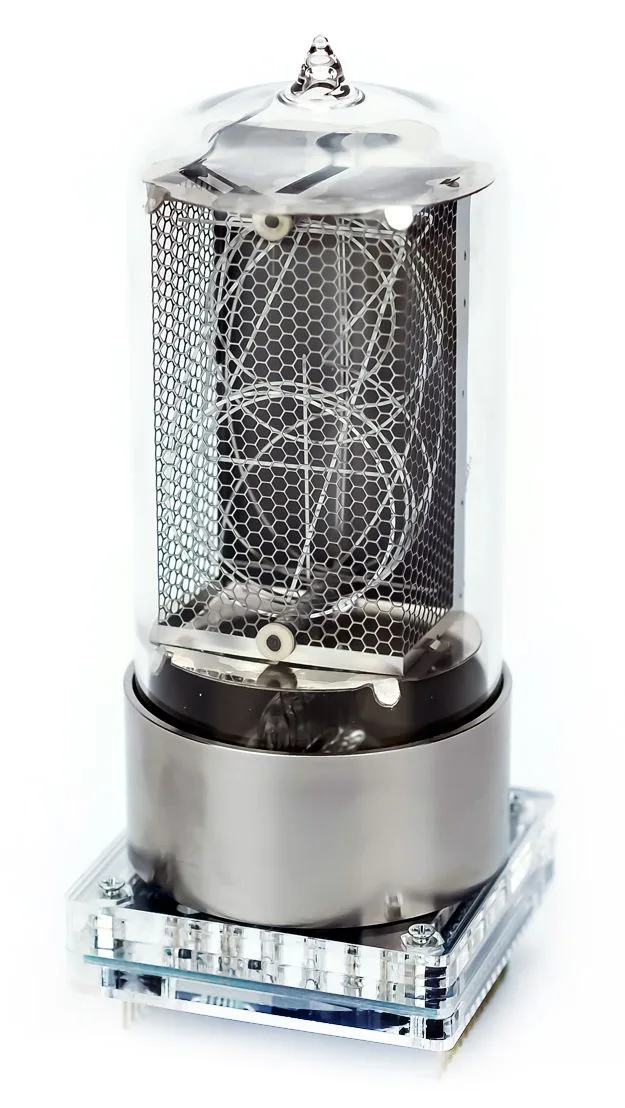

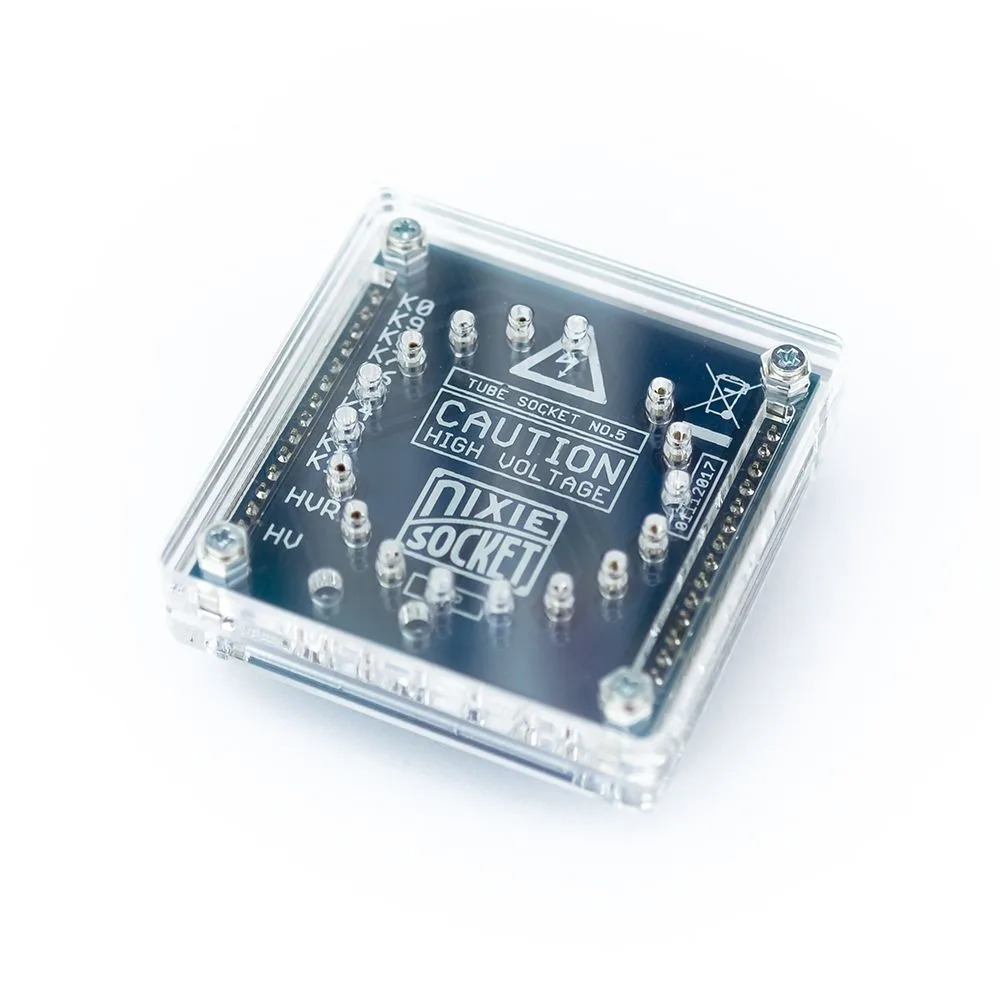

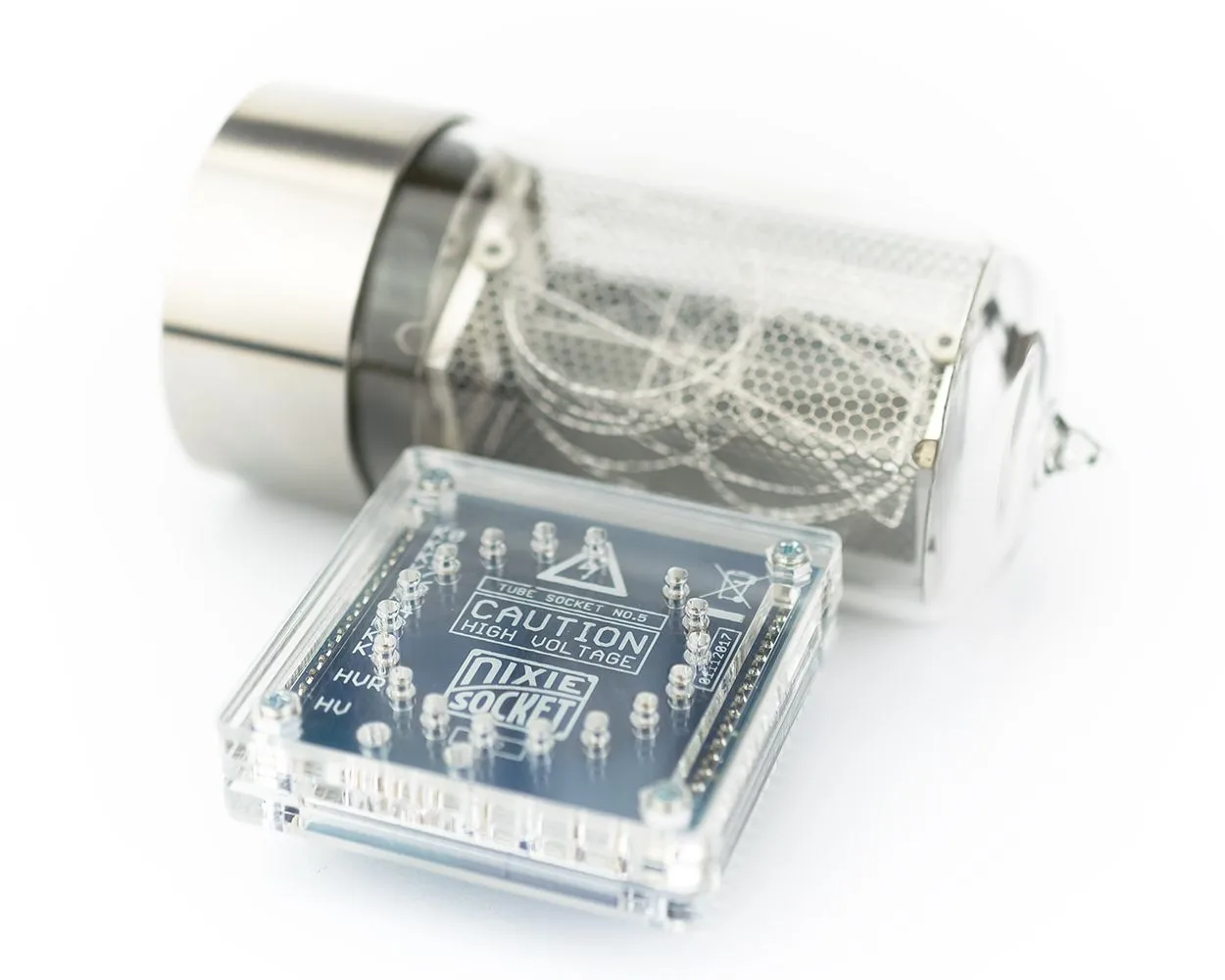

Nixie Tube Socket no.5

SOCKET NO.5

RZ568M – Dalibor Farny, ZIN70 – Millclock (Z568 pinout), Z568M, Z5680M, B7037, NL7037, NL934, B8033, NL8091, B8091, NL1212

Nixie Tube Socket no.6

SOCKET NO.6

IN8

Nixie Tube Socket no.7

SOCKET NO.7

IN2

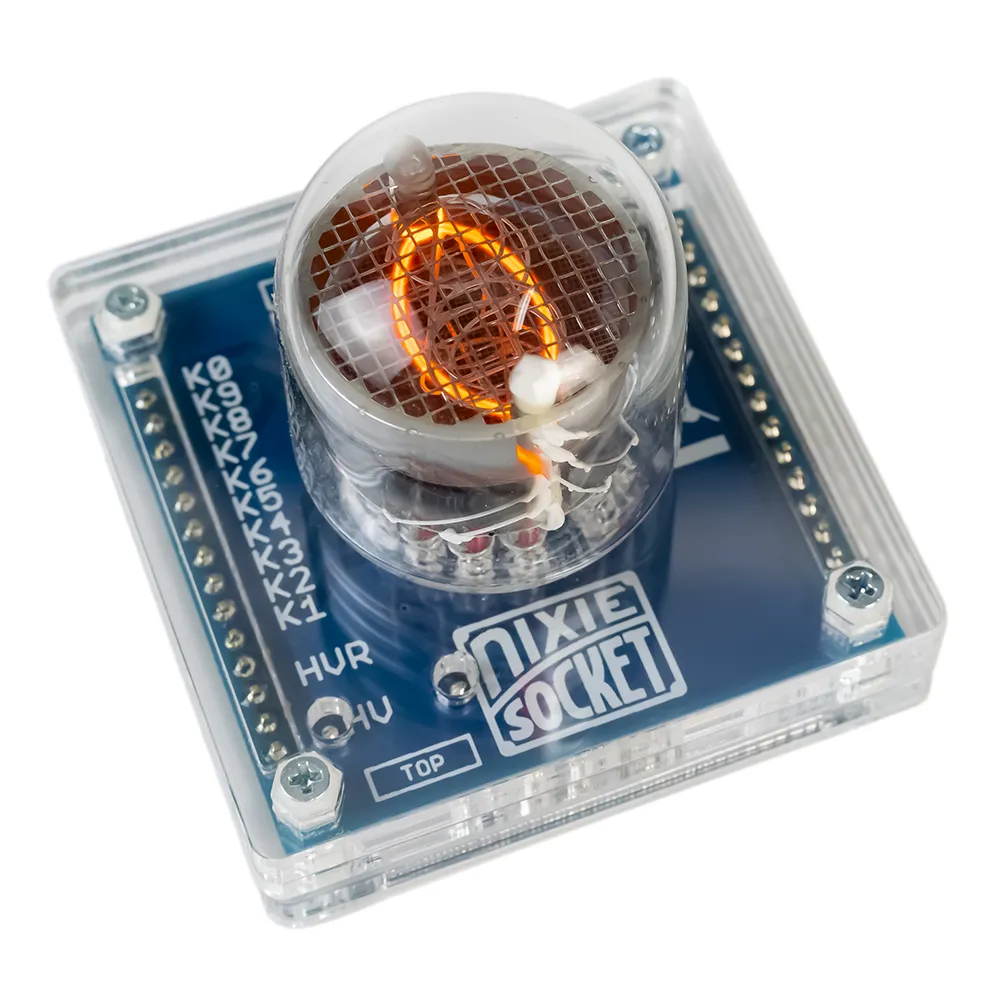

Nixie Tube Socket no.8

SOCKET NO.8

IN4

Nixie Tube Socket no.9

SOCKET NO.9

IN14

Nixie Tube Socket no.10

SOCKET NO.10

IN16

Nixie Tube Socket no.11

SOCKET NO.11

Z570M, B570M, Z573M, Z574M, Z5730M, Z5740M, ZM1080, ZM1081, ZM1082, ZM1134, ZM1138A, F9080B, F9080BA, TAF1093, TAF1317A, TAU7030

Nixie Tube Socket no.12

SOCKET NO.12

IN17

Nixie Tube Socket no.13

SOCKET NO.13

IN1, LC516

Nixie Tube Socket no.14

SOCKET NO.14

IN19A, IN19B, IN19V

Nixie Tube Socket no.15

SOCKET NO.15

IN7, IN7A, IN7B

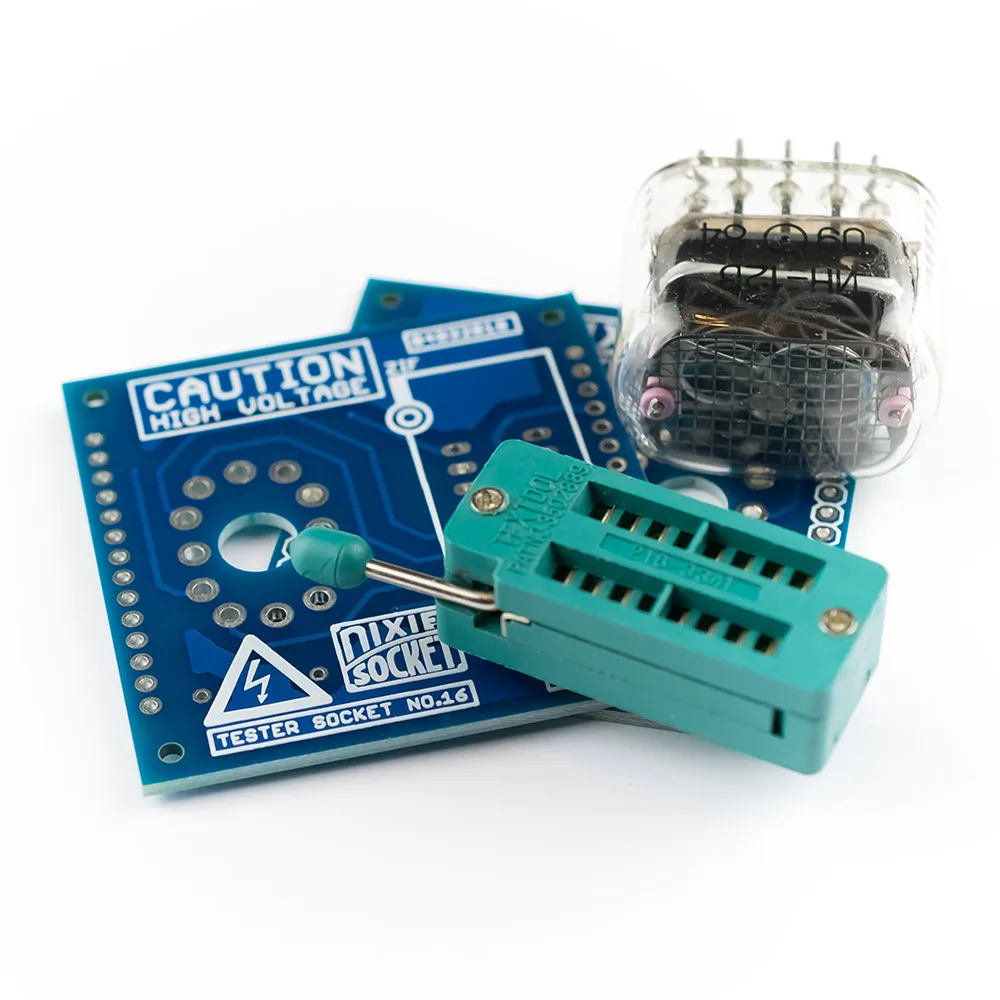

Nixie Tube Socket no.16

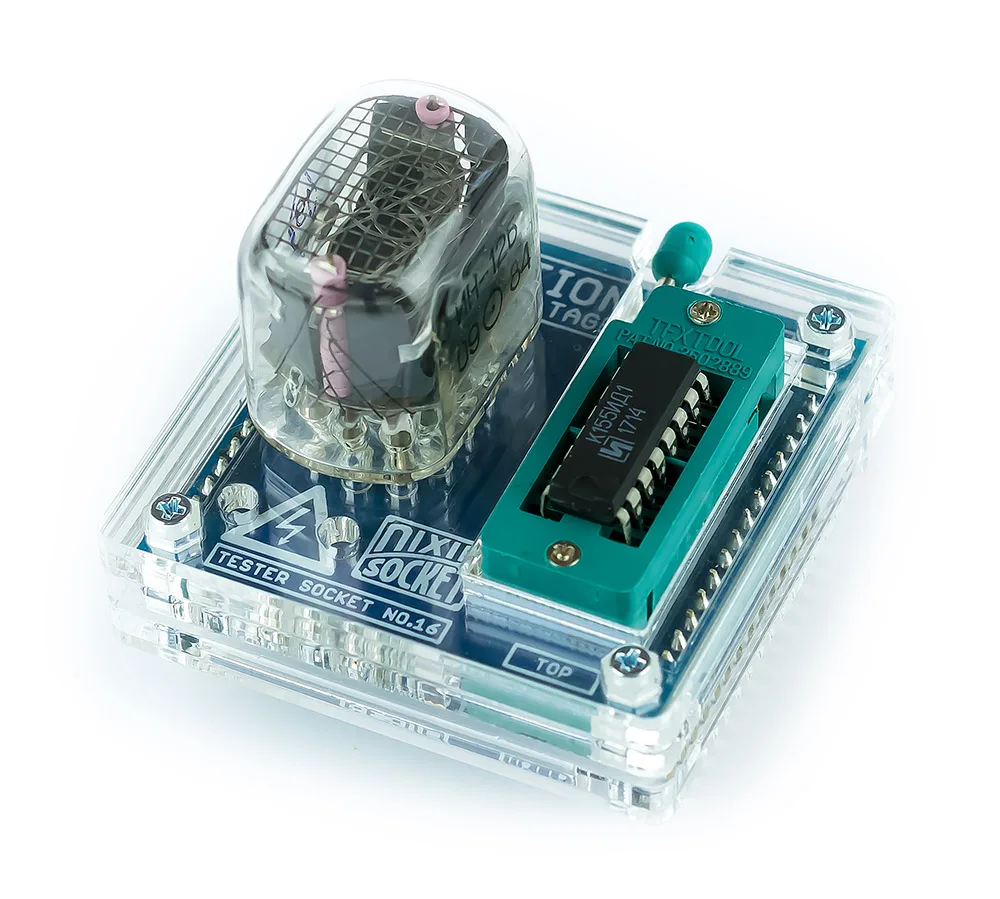

SOCKET NO.16

NIXIE TUBE DRIVER SOCKET. DEDICATED FOR NIXIE TUBE TESTER. IN12 – TUBE INDICATOR. TUBE DRIVERS: 74141, DM74141, DM74141N, NTE74141, SN74141, SN74141J, SN74141N, TL74141N, 155ID1, K155ID1, KM155ID1, 7441, 7441A, DM7441A, DM5441A, DM54141, DM8640N, FJL101, FLL101

Nixie Tube Socket no.17

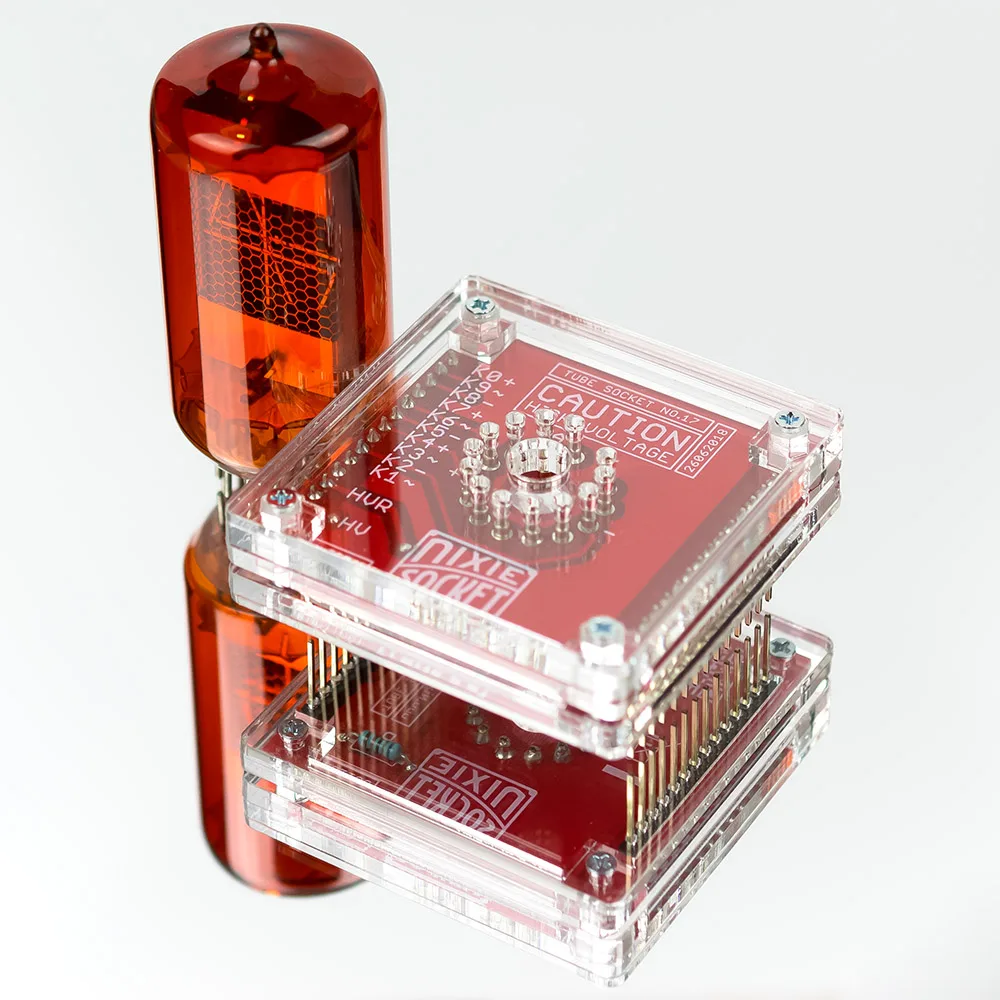

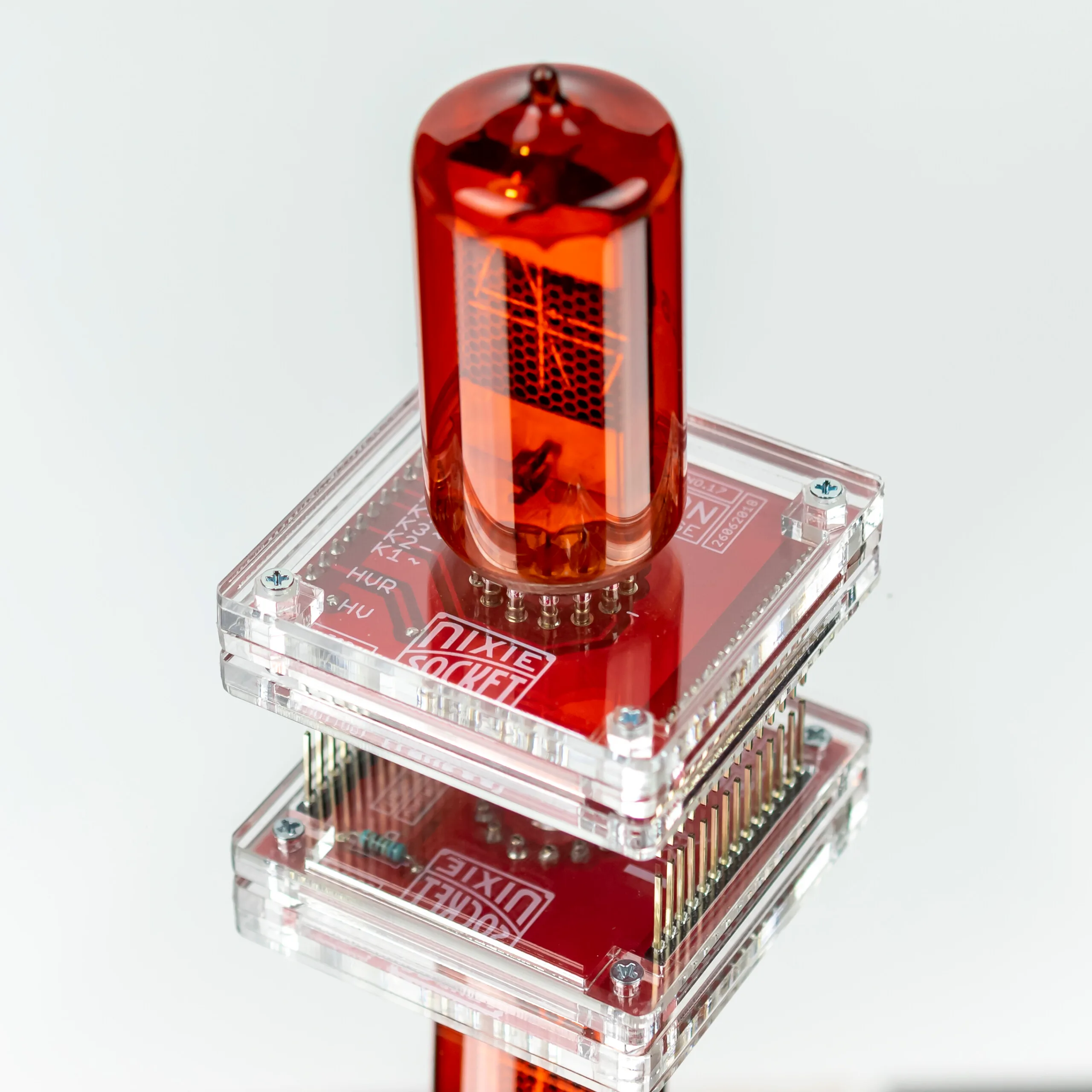

SOCKET NO.17

Z567M, Z5670M, ZM1041, ZM1043. COMPATIBLE WITH ALL DEVICES. DEDICATED FOR USELESS NIXIE DEVICE

Nixie Tube Socket no.18

SOCKET NO.18

IN8-2

Nixie Tube Socket no.19

SOCKET NO.19

ZM1000, ZM1001, ZM1005, ZM1005R, ZM1006, ZM1010, ZM1011, ZM1012, ZM1013, MTC0X 3B/3F/3J/4I/5B/6B/6F, MCD0X, MUD0X

Nixie Tube Socket no.20

SOCKET NO.20A

B7971, NL7971, 283CQAD7971. WITH CATHODE RESISTORS.

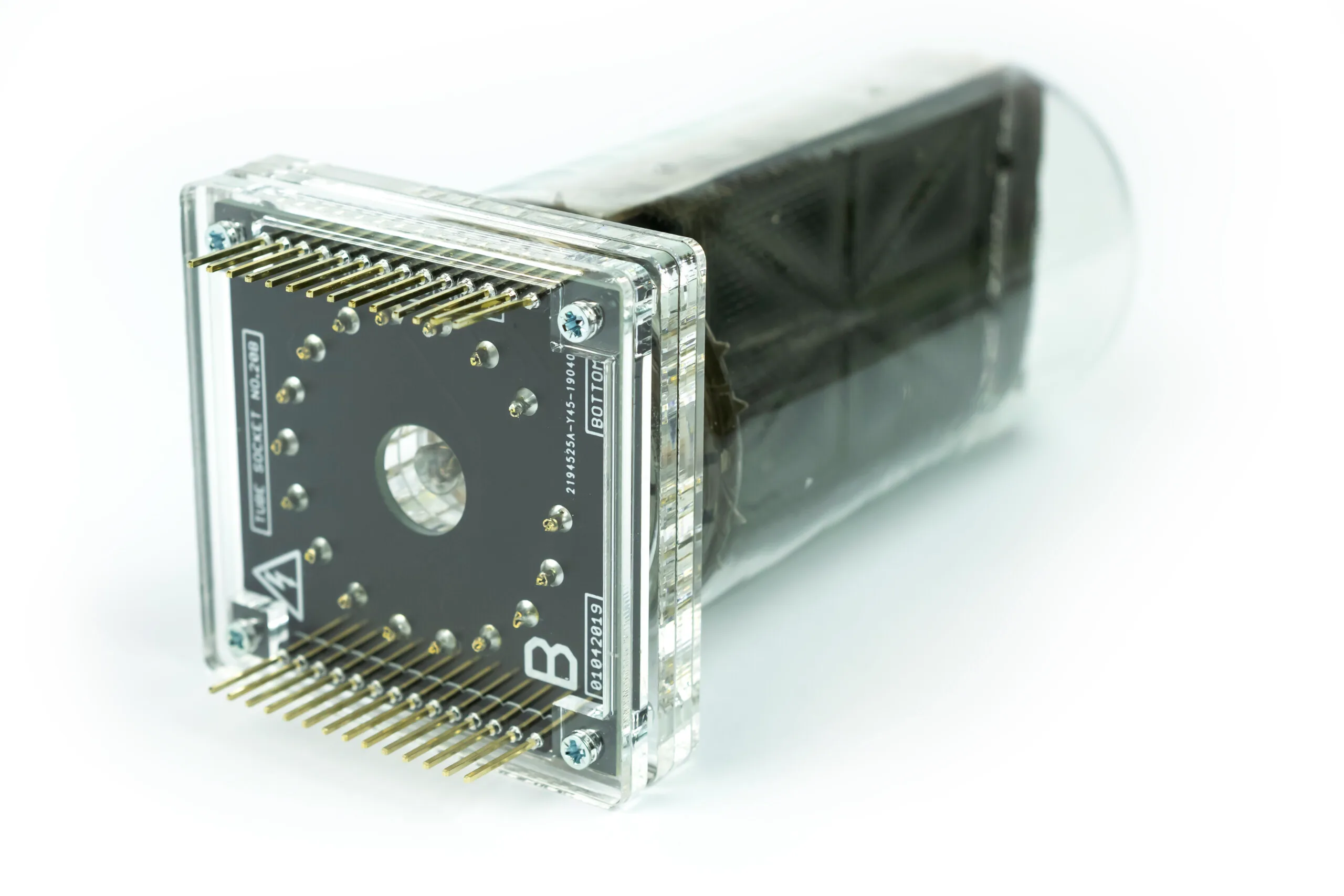

Nixie Tube Socket no.20

SOCKET NO.20B

B7971, NL7971, 283CQAD7971. WITHOUT CATHODE RESISTORS. DEDICATED FOR PRO NIXIE TESTER.

Nixie Tube Socket no.21

SOCKET NO.21

ZIN18 – Millclock pinout

Nixie Tube Socket no.22

SOCKET NO.22

B5440, B5440A, B5441, B5441A, NL5441A, B5442, NL5442, B5442A, B5445, B5448, NL987

Nixie Tube Socket no.23

SOCKET NO.23A

B5971, NL5971. WITH CATHODE RESISTORS.

Nixie Tube Socket no.23

SOCKET NO.23B

B5971, NL5971. WITHOUT CATHODE RESISTORS. DEDICATED FOR PRO NIXIE TESTER.

Nixie Tube Socket no.24

SOCKET NO.24A

B8971, NL8971. WITH CATHODE RESISTORS.

Nixie Tube Socket no.24

SOCKET NO.24B

B8971, NL8971. WITHOUT CATHODE RESISTORS. DEDICATED FOR PRO NIXIE TESTER.

Nixie Tube Socket no.25

SOCKET NO.25

NL803, NL807, NL811, NL812, NL821, NL840, NL840VR, NL841, NL842, NL843, NL844, NL845, NL847, NL848, NL864, NL867, NL900, NL908, NL939, NL943, CK1907, CK8754, 340-0005

Nixie Tube Socket no.26

SOCKET NO.26A

ZM1350. WITH CATHODE RESISTORS.

Nixie Tube Socket no.26

SOCKET NO.26B

ZM1350. WITHOUT CATHODE RESISTORS. DEDICATED FOR PRO NIXIE TESTER.

Nixie Tube Socket no.27

SOCKET NO.27

ZIN70 – Millclock pinout

Nixie Tube Socket no.28

SOCKET NO.28

Z590M, Z5900M

Nixie Tube Socket no.29

SOCKET NO.29A

MG-17G

Nixie Tube Socket no.29

SOCKET NO.29B

MG-17G. WITHOUT CATHODE RESISTORS. DEDICATED FOR PRO NIXIE TESTER.

Nixie Tube Socket no.30

SOCKET NO.30

DGM01
